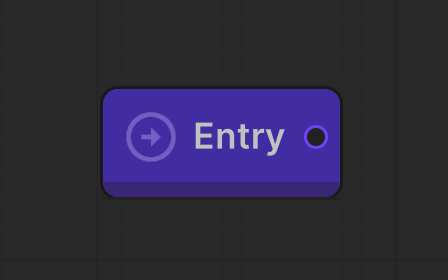

# Nodes State Machine 2 provides a variety of node types to build any game logic you can imagine. ## Node Types Overview | Node | Icon | Purpose | | ------------------------ | ------------- | ---------------------------------- | | 🟢 **Start** | Entry point | Begins state machine execution | | ⚡ **Actions** | Execute tasks | Runs Game Creator 2 actions | | 🔀 **Branch** | Decision | Multiple conditional paths | | ❓ **Conditions** | Evaluate | Check conditions before proceeding | | 🎯 **Trigger** | Events | React to game events | | 📦 **Sub-State Machine** | Modular | Embed another state machine | | 🚪 **Exit** | Terminate | End execution with callbacks | | ➡️ **Relay** | Organization | Visual routing (no logic) | *** ## 🟢 Start Node The **Start Node** is the entry point of your state machine. Execution begins here when the runner starts. Start Node ### Features * **Automatically created** when you create a new state machine * Cannot be manually created or deleted * Can include initial actions * Only has **output ports** (no inputs) ### Connections | Port | Direction | Connects To | | ------ | --------- | ---------------------------------------------------- | | Output | → | Actions, Branch, Conditions, Sub-State Machine, Exit | {% hint style="info" %} The Start node executes immediately when the State Machine Runner starts. Connect it to your initial behavior. {% endhint %} *** ## ⚡ Actions Node The **Actions Node** executes one or more Game Creator 2 actions in sequence. ![](https://3895715781-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LDchaEIEhpBAh2gCe06%2Fuploads%2Fgit-blob-e64688dd8b2dd05bc9b5c490b6b6f5da56722332%2Fimage.png?alt=media) ### Features * Add unlimited actions * Actions execute in order (top to bottom) * Supports async actions (waits for completion) * Can be triggered by any node type ### Connections | Port | Direction | Connects To | | ------ | --------- | -------------------------------------------------------------- | | Input | ← | Start, Actions, Branch, Conditions, Trigger, Sub-State Machine | | Output | → | Any node | ### Use Cases * Play animations or sounds * Modify variables * Control characters * Spawn objects * Any Game Creator 2 action *** ## 🔀 Branch Node The **Branch Node** creates multiple conditional paths, similar to a switch statement. ![](https://3895715781-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LDchaEIEhpBAh2gCe06%2Fuploads%2Fgit-blob-f28f45d386200193ef9235be90a0206add7f7c66%2Fimage.png?alt=media) ### Features * Add multiple branches with conditions * Each branch has its own conditions and actions * First matching branch executes * Default output if no conditions match ### Connections | Port | Direction | Connects To | | -------------- | --------- | --------------------------------- | | Input | ← | Any node | | True Outputs | → | Per-branch outputs | | Default Output | → | Fallback when no conditions match | ### Example ``` Branch Node: ├─ Branch 1: "Health < 25%" → Flee Actions ├─ Branch 2: "Has Weapon" → Attack Actions └─ Default → Patrol Actions ``` *** ## ❓ Conditions Node The **Conditions Node** evaluates conditions and routes execution based on the result. ![](https://3895715781-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LDchaEIEhpBAh2gCe06%2Fuploads%2Fgit-blob-b7c825b6864c44b729e514aa87a450dafef9f825%2Fimage.png?alt=media) ### Features * Add multiple conditions (AND logic) * Two outputs: True and False * Can be triggered by other nodes or triggers ### Connections | Port | Direction | Connects To | | ------------- | --------- | ------------------------ | | Input | ← | Any node | | Trigger Input | ↑ | Trigger nodes only | | True Output | → | When all conditions pass | | False Output | → | When any condition fails | ### Use Cases * Check player state before actions * Validate game conditions * Gate progression *** ## 🎯 Trigger Node The **Trigger Node** reacts to Game Creator 2 events and triggers, providing event-driven execution. ![](https://3895715781-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LDchaEIEhpBAh2gCe06%2Fuploads%2Fgit-blob-b0d1e5cd53397f1b355969d414ba66a08217d42f%2Fimage.png?alt=media) ### Features * Use any GC2 trigger type * Event-driven (waits for trigger) * Self-contained entry point * Works with collision, input, timers, and more ### Connections | Port | Direction | Connects To | | ---------------- | --------- | ---------------------------------------------- | | Output | → | Actions, Branch, Conditions, Sub-State Machine | | Condition Output | ↓ | Directly to Conditions nodes | ### Common Triggers | Trigger | Description | | ---------------------- | --------------------- | | **On Start** | When runner begins | | **On Update** | Every frame | | **On Trigger Enter** | Collision detection | | **On Input** | Player input | | **On Timer** | Timed events | | **On Variable Change** | React to data changes | {% hint style="success" %} Trigger nodes can act as **alternative entry points**, running in parallel with the Start node. {% endhint %} *** ## 📦 Sub-State Machine Node The **Sub-State Machine Node** embeds another state machine, enabling modular and reusable design. ### Features * Reference any State Machine asset * Nested execution * Exit nodes in the sub-machine connect to this node's outputs * Perfect for reusable behavior modules ### Connections | Port | Direction | Connects To | | ------ | --------- | ------------------------------------------ | | Input | ← | Any node | | Output | → | Triggered by Exit nodes in the sub-machine | ### Use Cases * **Reusable AI behaviors** (Patrol, Combat, Flee) * **Game mode management** (Menu, Playing, Paused) * **Complex sequences** (Cutscenes, Tutorials) ### Creating Sub-State Machines 1. Drag a State Machine asset into the graph 2. Or right-click → Create Node → Sub-State Machine 3. Assign the state machine asset in the Inspector {% hint style="info" %} **Tip:** Drag and drop a State Machine asset from the Project window directly onto the graph to instantly create a Sub-State Machine node. {% endhint %} *** ## 🚪 Exit Node The **Exit Node** terminates state machine execution and can trigger callbacks. ### Features * **Automatically created** when you create a new state machine * Cannot be manually created or deleted * Clean termination point * Triggers parent Sub-State Machine outputs * Useful for signaling completion ### Connections | Port | Direction | Connects To | | -------------- | --------- | -------------------- | | Input | ← | Any node | | *(No outputs)* | — | Terminates execution | ### Use Cases * End a sub-state machine and continue parent flow * Signal completion of a behavior * Clean shutdown with callbacks *** ## ➡️ Relay Node The **Relay Node** is for visual organization only — it doesn't execute any logic. ### Features * Route connections for cleaner graphs * No execution overhead * Purely visual organization ### Connections | Port | Direction | Connects To | | ------ | --------- | ----------- | | Input | ← | Any node | | Output | → | Any node | ### Use Cases * Organize complex connection paths * Improve graph readability * Route around node clusters *** ## See Also * [Node Features](https://docs.ninjutsugames.com/game-creator-2/state-machine-2/nodes/node-features) — Common features like rename, lock, disable * [Graph Editor](https://docs.ninjutsugames.com/game-creator-2/state-machine-2/graph-editor) — Creating and connecting nodes * [Getting Started](https://docs.ninjutsugames.com/game-creator-2/state-machine-2/getting-started) — Build your first state machine
